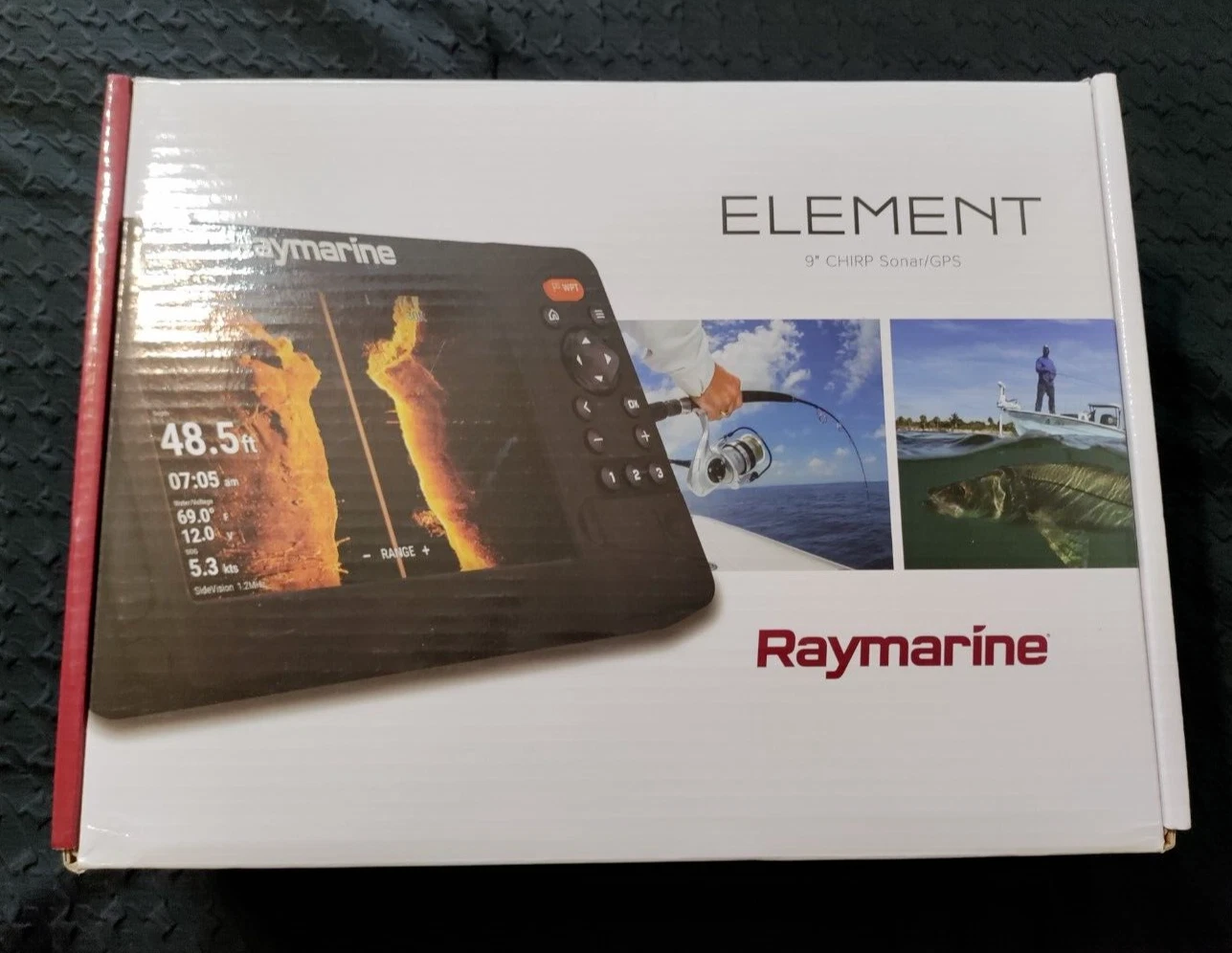

Raymarine Element 9HV with NAV+ Maps and HV100+ Transducer

Raymarine Element 9 HV is a highly capable, standalone fishfinder/chartplotter combo designed specifically for anglers who prioritize high-end sonar performance and intuitive, button-based control over complex networking features.

It is a distinct product line from the Axiom series; while Axiom units are designed as full-vessel networked systems (MFDs), the Element series is optimized to be a powerful, “all-in-one” fish-finding powerhouse.

Core Capabilities & Sonar Technology

• HyperVision™ 1.2 MHz Sonar: This is the standout feature of the Element HV series. By using ultra-high frequencies (1.2 MHz), it provides significantly higher image resolution for DownVision, SideVision, and RealVision 3D than standard sonar systems, allowing you to identify fish, structure, and vegetation with life-like detail at ranges up to 100 feet (30 meters).

• Versatile Sonar Suite: It comes with the HV-100+ transducer included, which supports:

  • HyperVision (1.2 MHz): For extreme detail.

  • Standard CHIRP (350 kHz): For longer-range scanning (up to 600 ft / 183 m for DownVision/SideVision).

  • High-Frequency CHIRP (200 kHz): For reliable fish targeting and bottom tracking at depths up to 900 ft (274 m).

• RealVision™ 3D: Integrated 3D sonar allows you to interpret channel beds, ledges, and contour changes accurately in real-time.

Display & Interface

• Keypad Control: The Element series deliberately omits a touchscreen. It utilizes a robust, button-based interface paired with the LightHouse Sport operating system. This is often preferred by anglers who need precise control in rough water, when wearing gloves, or when the screen is wet.

• Display Quality: Features a bright, 1500-nit, 9-inch optically bonded LCD screen, ensuring excellent visibility even in direct sunlight.

• Fast Processing: A powerful quad-core processor ensures smooth map redraws, fast menu navigation, and fluid 3D sonar rendering.

Navigation & Networking

• Mapping: Supports Raymarine LightHouse Charts, Navionics, and C-MAP. It also features RealBathy™ for creating your own high-detail depth maps on the fly.

• Limited Networking: While it is a “standalone” system, it is not “closed off.” It supports NMEA 2000 for engine data, tank sensors, and heading sensors, and includes Wi-Fi for radar connectivity (Raymarine Quantum series) and mobile app integration.

Technical Summary

Strategic Insight for Your Projects

Given your business, the Element 9 HV is an excellent recommendation for customers who want professional-grade sonar performance without the high cost and complexity of a fully integrated marine network. It is “pure performance” for the fishing experience.
