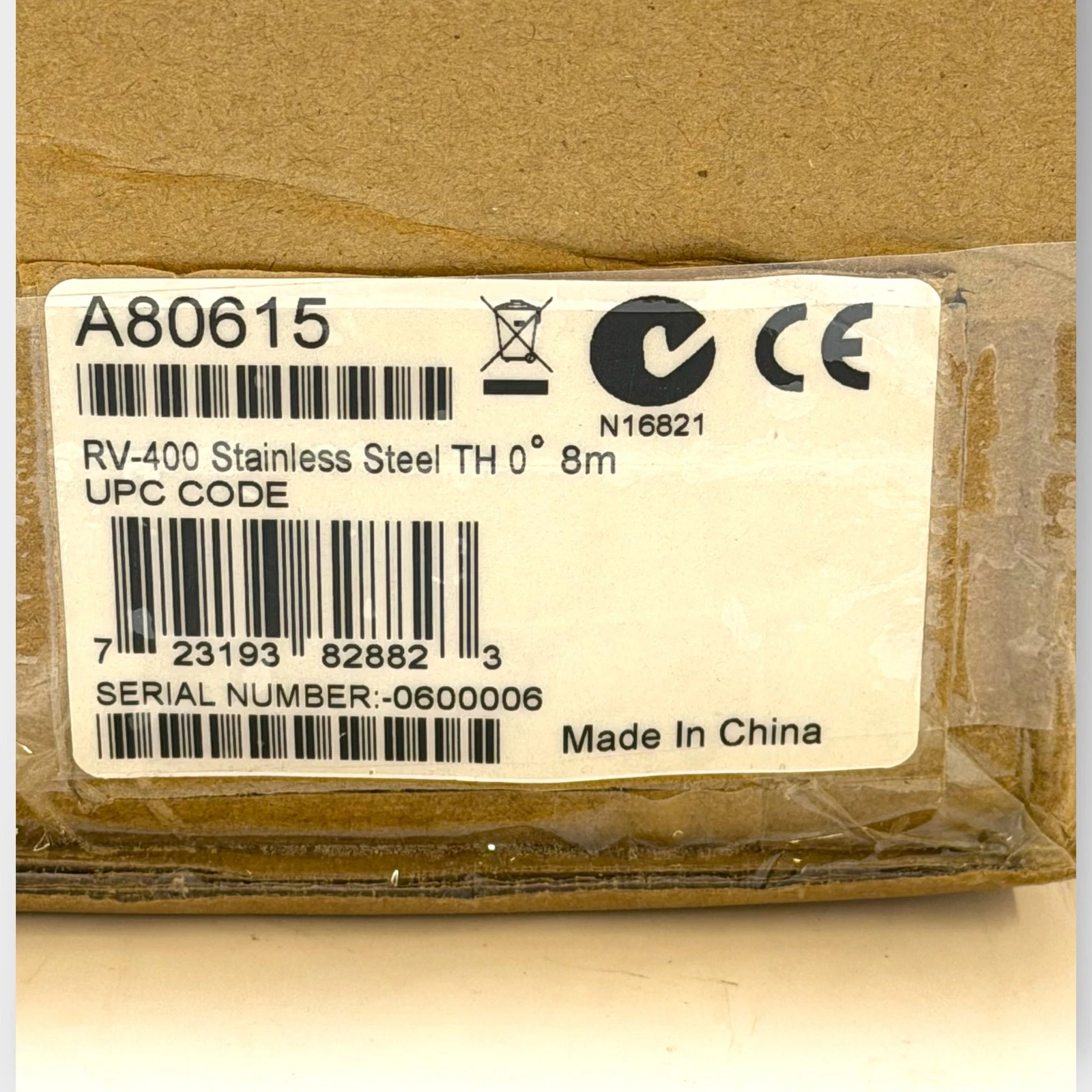

Raymarine A80615 RV-400 Thru-Hull Realvision 3D Transducer Stainless Steel – NEW

The Raymarine RV-400 (A80615) is a high-performance, stainless steel through-hull transducer designed for anglers who require a robust, low-profile mounting solution that delivers advanced sonar capabilities without the drag or vulnerability of a transom-mount unit.

Key Capabilities

• All-in-One Sonar: Combines four powerful technologies into one housing:

  • RealVision 3D: Creates a life-like, 3D model of the underwater environment.

  • DownVision: Provides photo-like imagery of structure directly below the boat.

  • SideVision: Offers high-resolution views of structure to the sides of the boat.

  • High-Frequency CHIRP: Optimized for precise fish targeting.

• Integrated AHRS: Features a built-in Attitude and Heading Reference System (AHRS). This stabilizes your sonar imagery by automatically compensating for vessel motion caused by waves, swells, or maneuvering, ensuring your 3D view remains steady.

• Stainless Steel Durability: The rugged stainless steel housing is suitable for fiberglass, wood, and metal hulls (an isolation kit is included to prevent galvanic corrosion on metal hulls).

• Low-Profile Design: Its near-flush, low-profile design slips effortlessly through the water, making it an excellent choice for high-speed powerboats and trailered boats.

Compatibility Note: Important Generation Differences

It is critical to match your transducer to the correct sonar generation. Raymarine has two distinct “RealVision” technology tiers:

1. RV-400 (A80615): This is the standard RealVision transducer. It is designed for use with:

   • Axiom+ RV models

   • Axiom Pro RVX models

   • RVX-1000 sonar modules

2. RVM-400 Series: Raymarine has released a newer RealVision MAX (RVM) series. These are NOT interchangeable with the standard RV series. If you have an Axiom 2 Pro RVM or an RVM-1600 sonar module, you must use the RVM-400 series transducer, not the standard RV-400.

Technical Specifications

• Mounting: Through-Hull (0° deadrise).

• Cable Length: 8 meters (approx. 26 feet).

• Material: Stainless Steel.

• Max Depths:

  • 3D / SideVision: ~300 ft (91 m)

  • DownVision: ~600 ft (183 m)

  • Conical CHIRP: ~900 ft (274 m)

Installation Checklist

• Hull Angle: The RV-400 is a 0° offset model, meaning it is designed for flat-bottom hulls (or hulls with less than a 5° deadrise). If your boat has a significant deadrise, you would typically need the offset pair (RV-412 or RV-420 series).

• Installation: As a through-hull unit, this requires drilling a 62 mm (2 7/16″) hole in your hull. While it is “easy” for a thru-hull, ensure you have the proper marine-grade sealant and the confidence to cut your hull, or have a certified marine technician handle the installation.

• Anti-Rotation: The kit includes an anti-rotation bolt to ensure the transducer remains fixed in the correct orientation.
