Lowrance Active Target 2 Live Sonar System

The Lowrance ActiveTarget® 2 is a top-tier live-scanning sonar system that provides real-time, high-resolution views of fish, underwater structure, and your lure, allowing you to see exactly how fish are reacting to your presentation.

Key Features

• Unmatched Clarity: Delivers the clearest, highest-resolution live images on the market, helping you distinguish between fish and structure with ease.

• Versatile Viewing Modes:

  • Forward View: See fish and structure ahead of your boat.

  • Down View: Track fish and your lure directly beneath your hull.

  • Scout View: Get an ultra-wide overhead view to locate bait balls and schools of fish quickly.

• Enhanced Stabilization: Optimized software ensures a smooth, steady image even when fishing in rough or choppy conditions.

• Expandable System: On compatible HDS® PRO displays, you can add a second ActiveTarget 2 system to view multiple modes simultaneously (e.g., Forward and Scout) or unlock a 360-degree “Scout Wide” view.

Critical Compatibility Note

As with your previous inquiries, please be aware that Lowrance ActiveTarget 2 is NOT compatible with Humminbird HELIX units.

ActiveTarget 2 uses proprietary Lowrance technology and requires a compatible Lowrance chartplotter to function. It is compatible with the following Lowrance displays:

• HDS® PRO

• HDS® LIVE

• HDS® Carbon

• Elite FS™

System Components

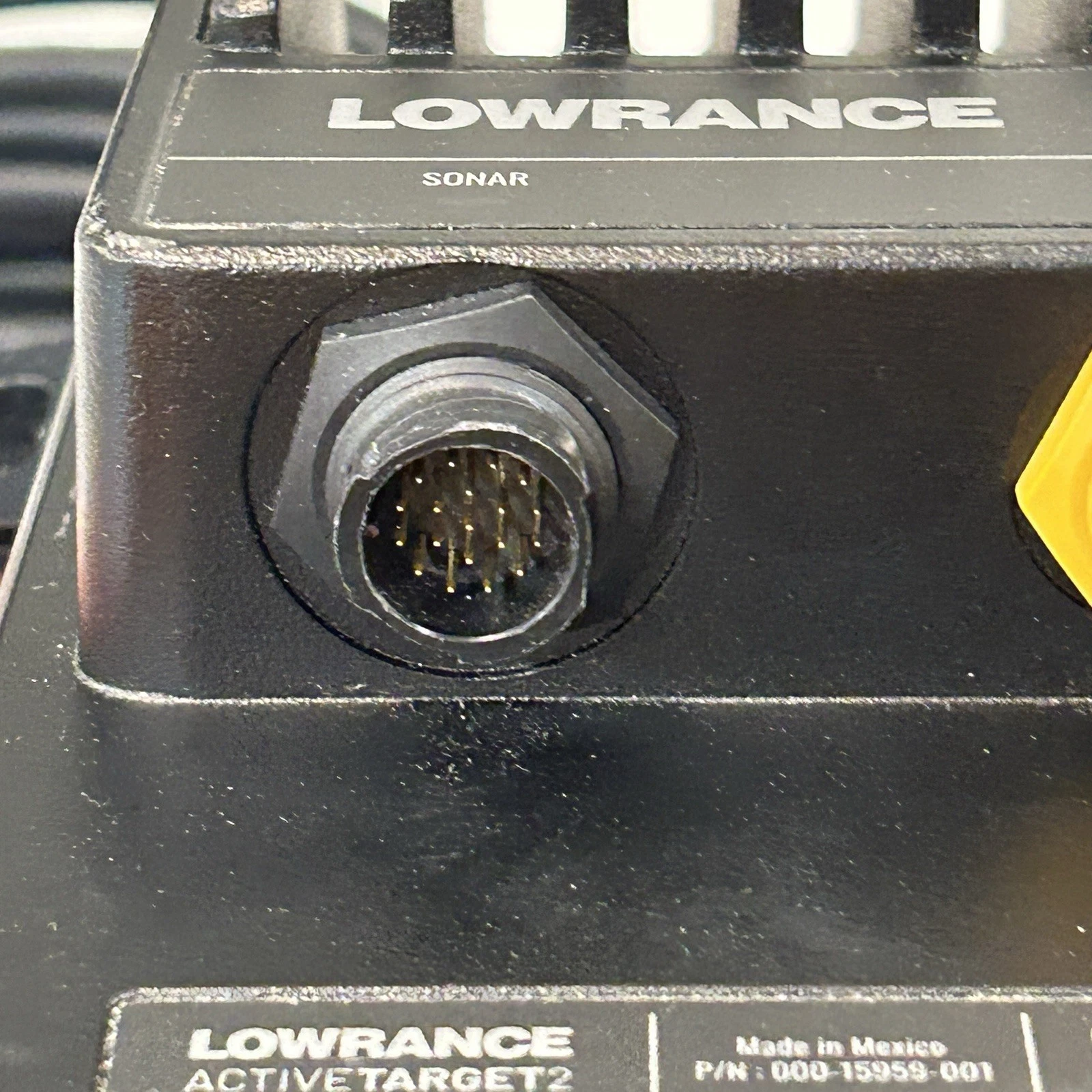

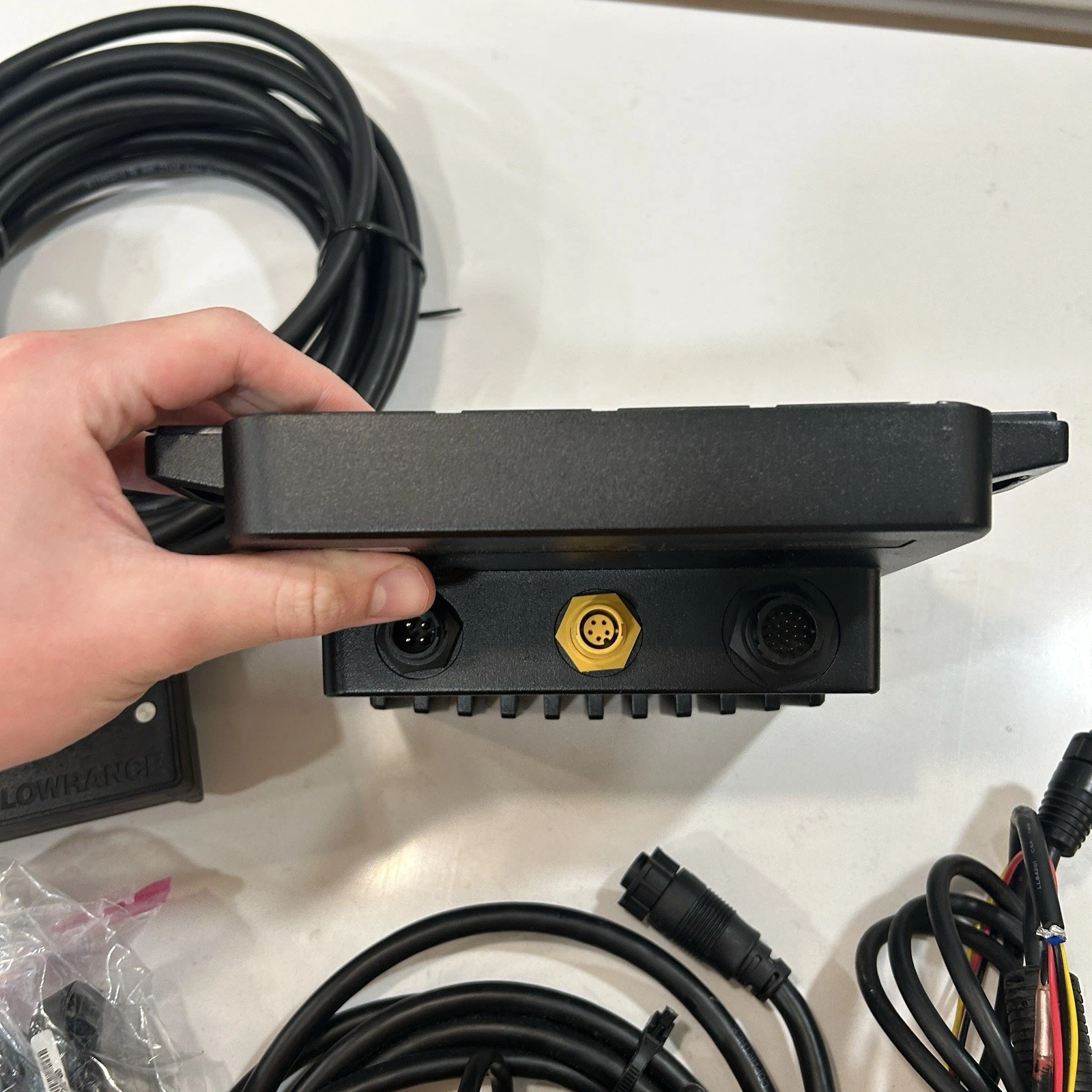

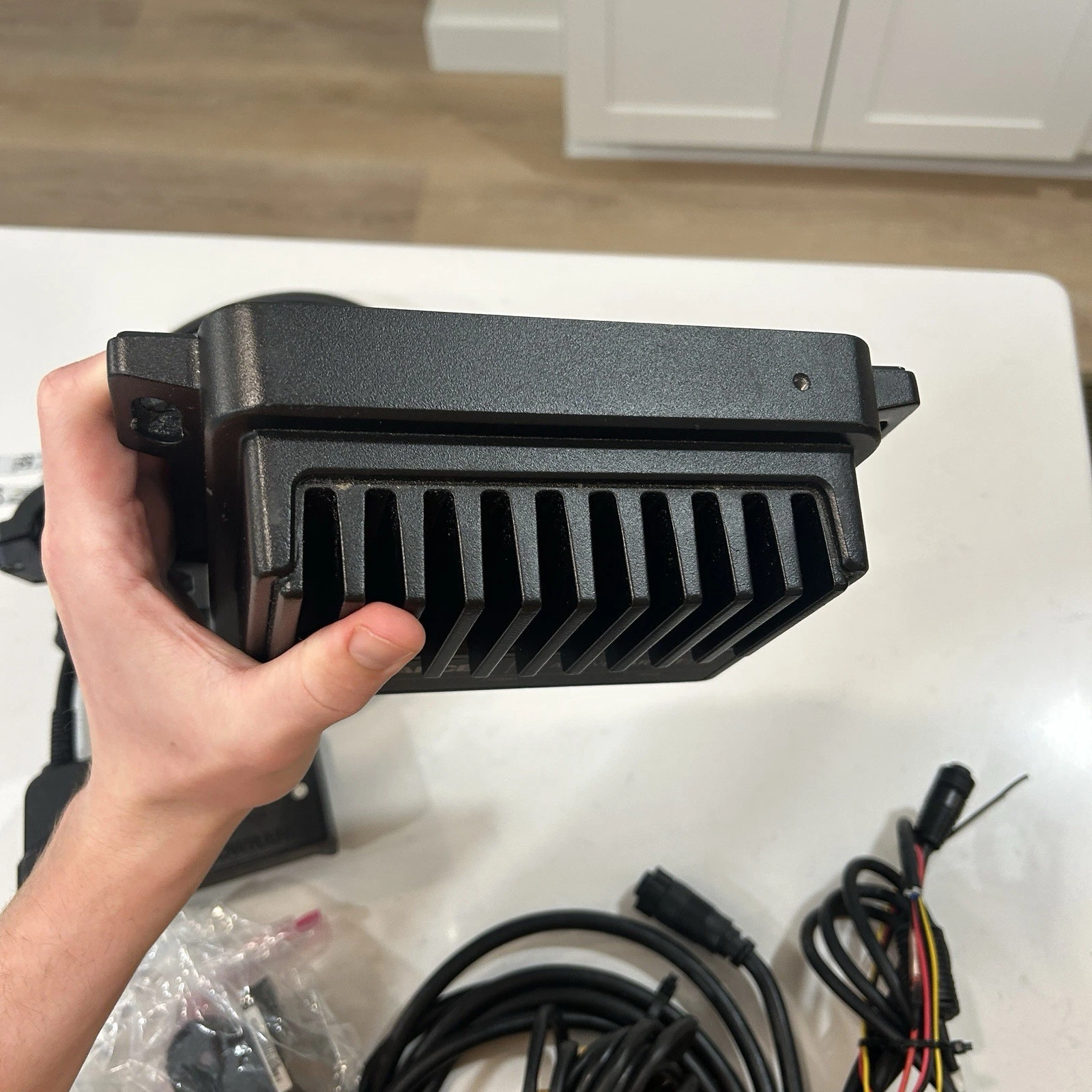

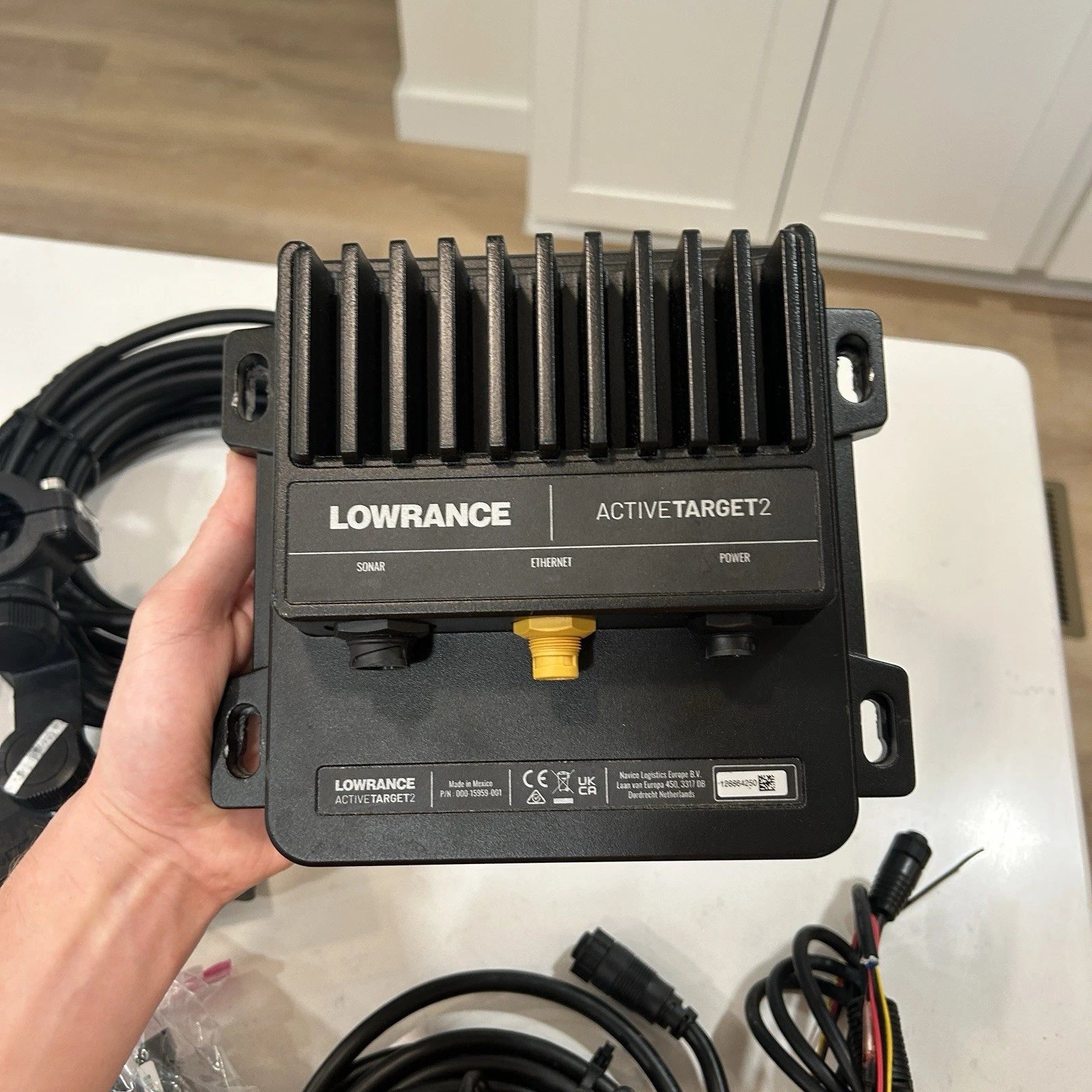

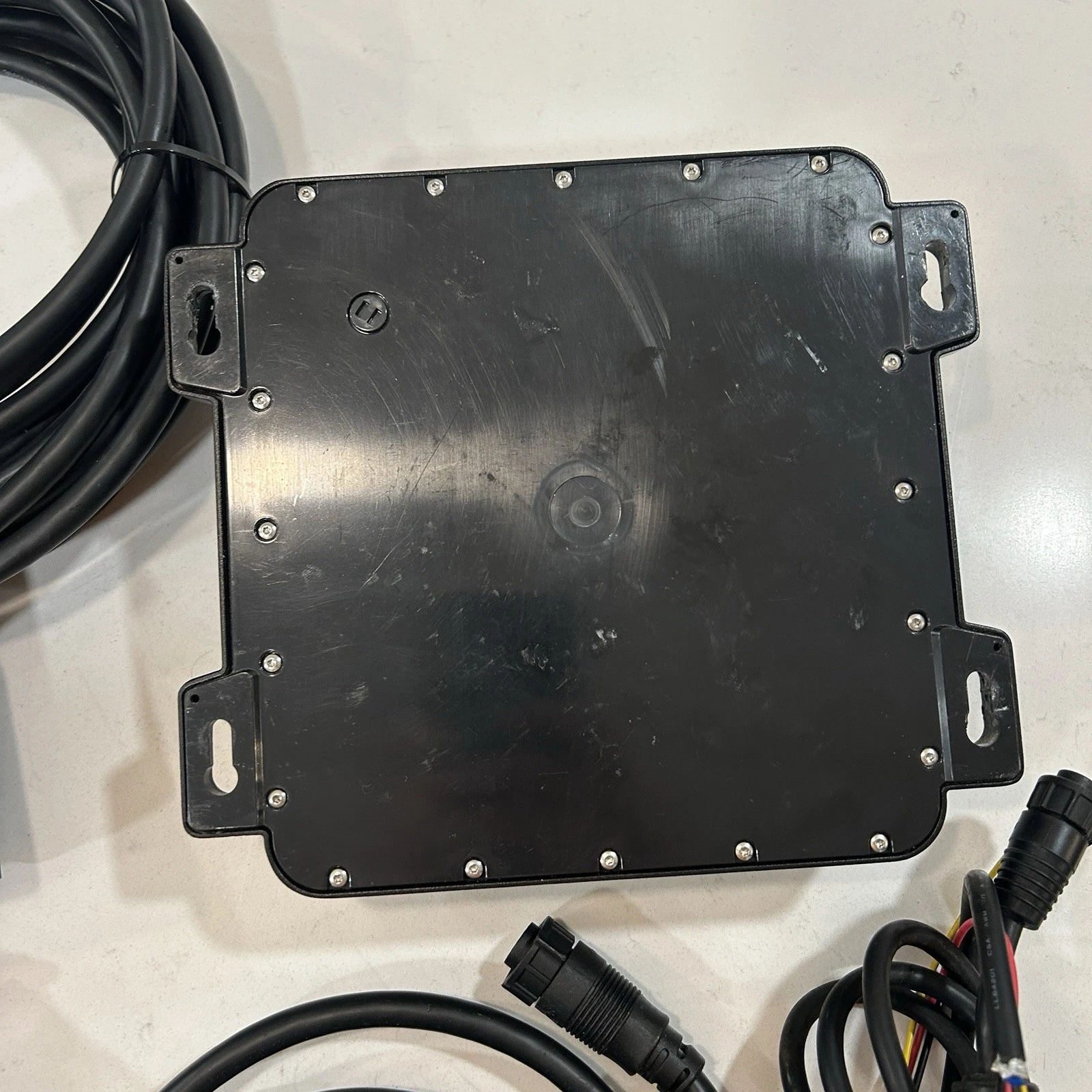

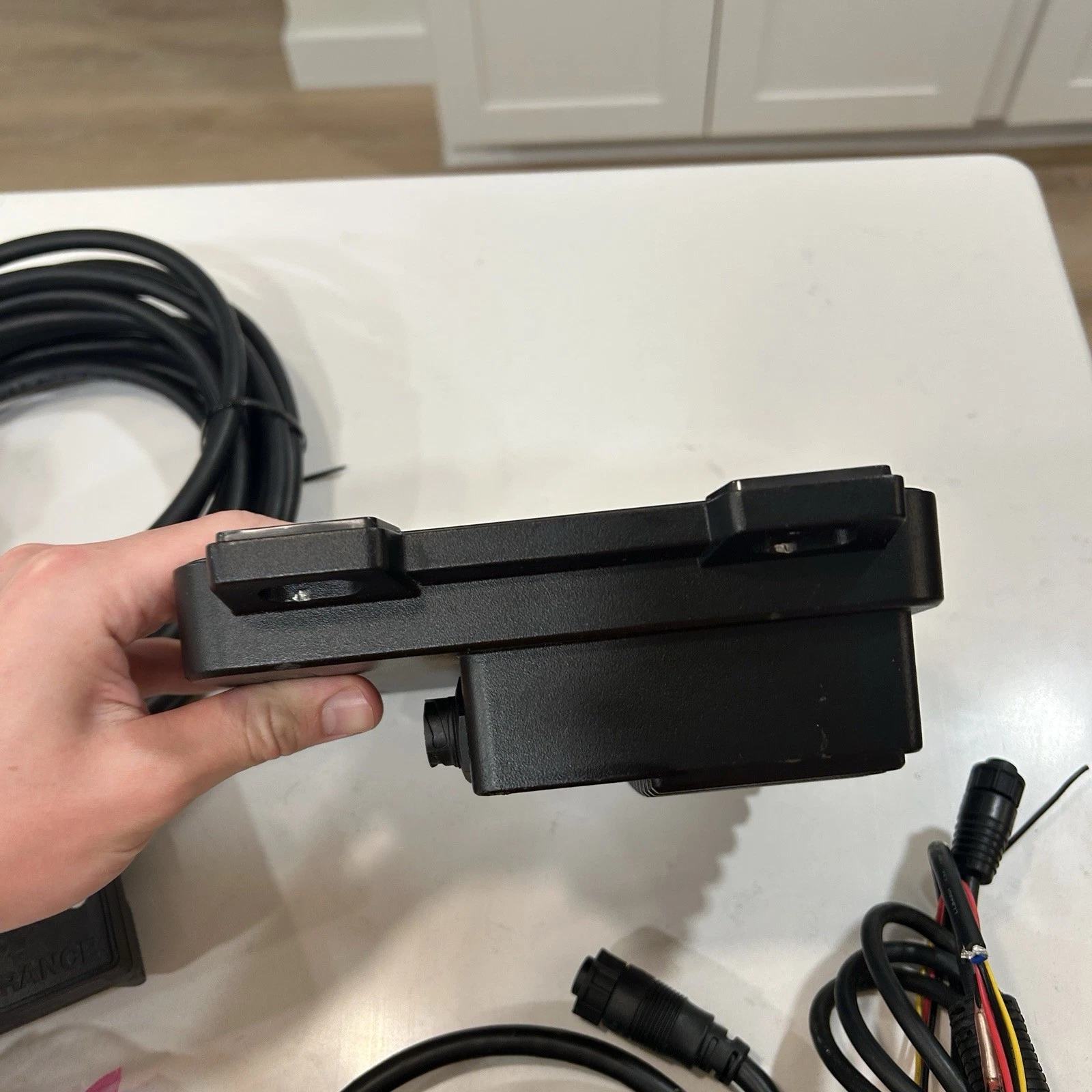

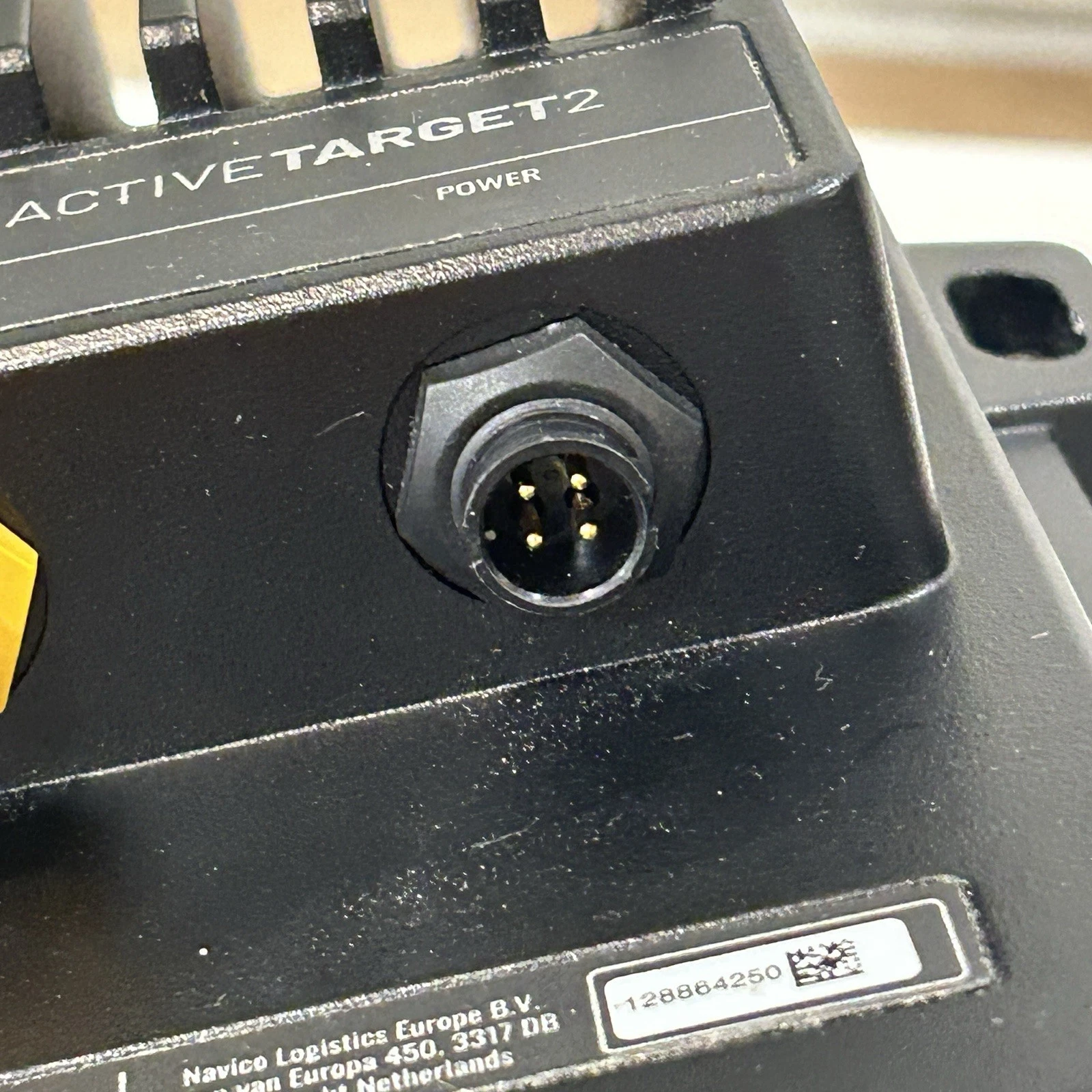

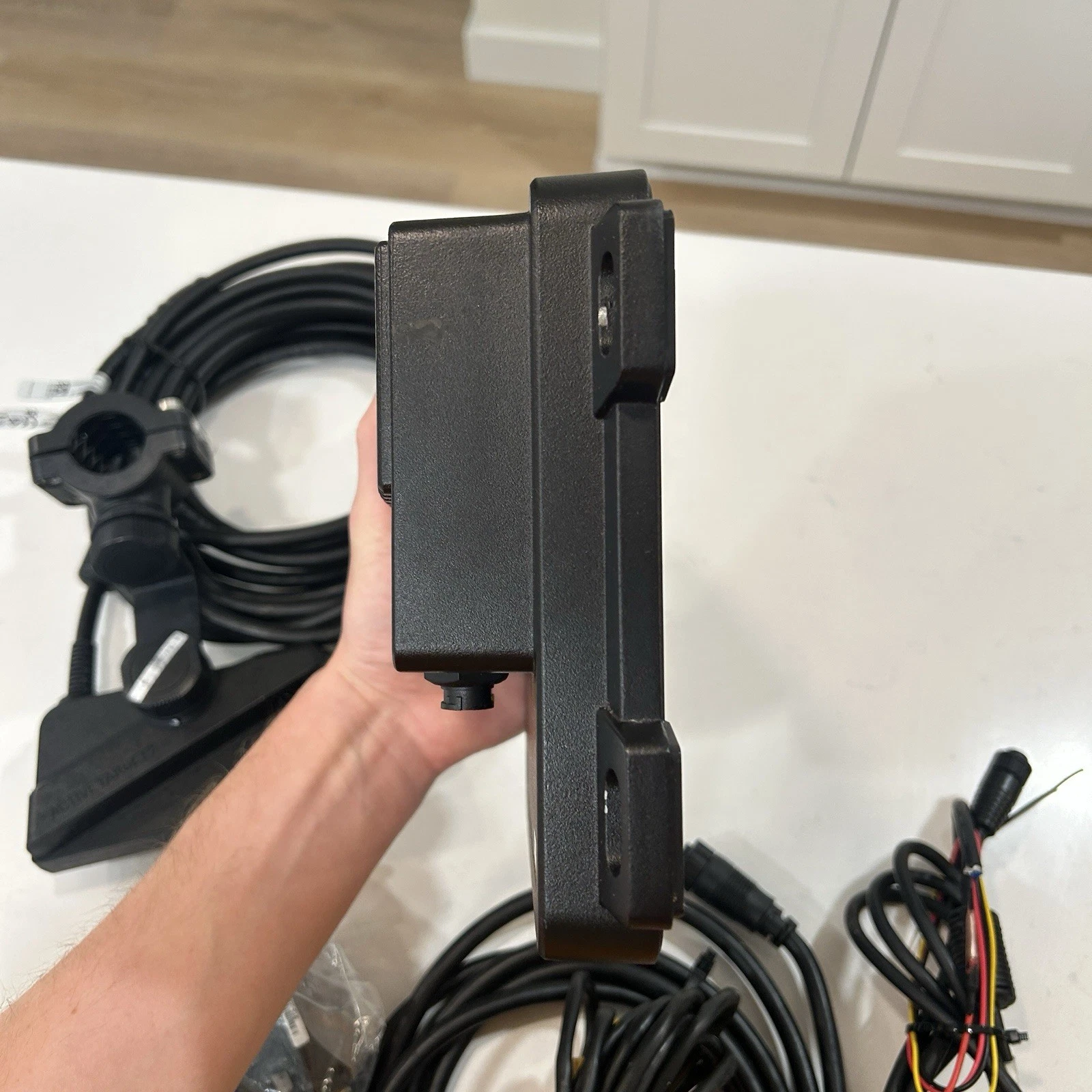

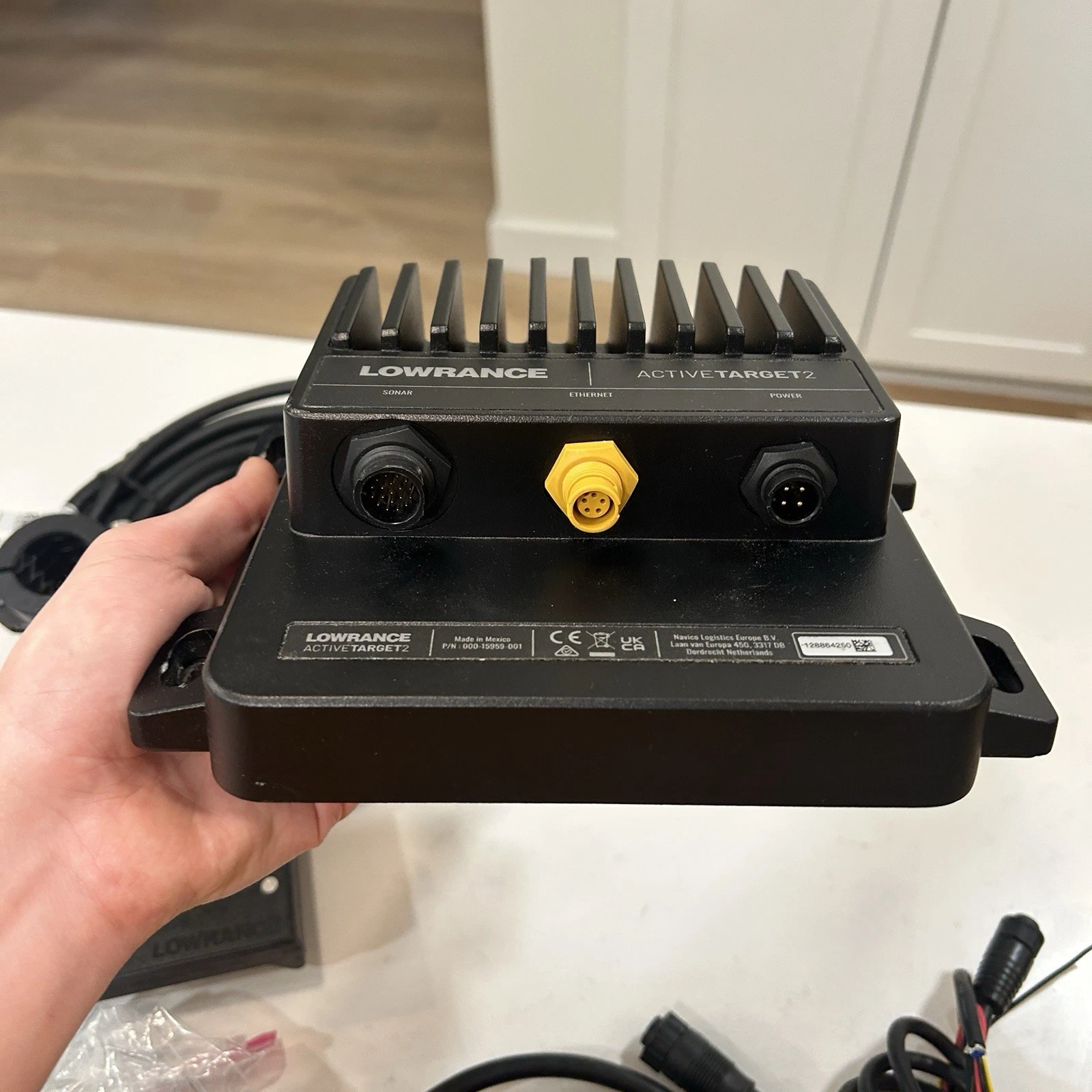

• ActiveTarget 2 Sonar Module (The “Black Box”): This is the core processing hub. It must be connected to a power source and linked to your Lowrance display via Ethernet.

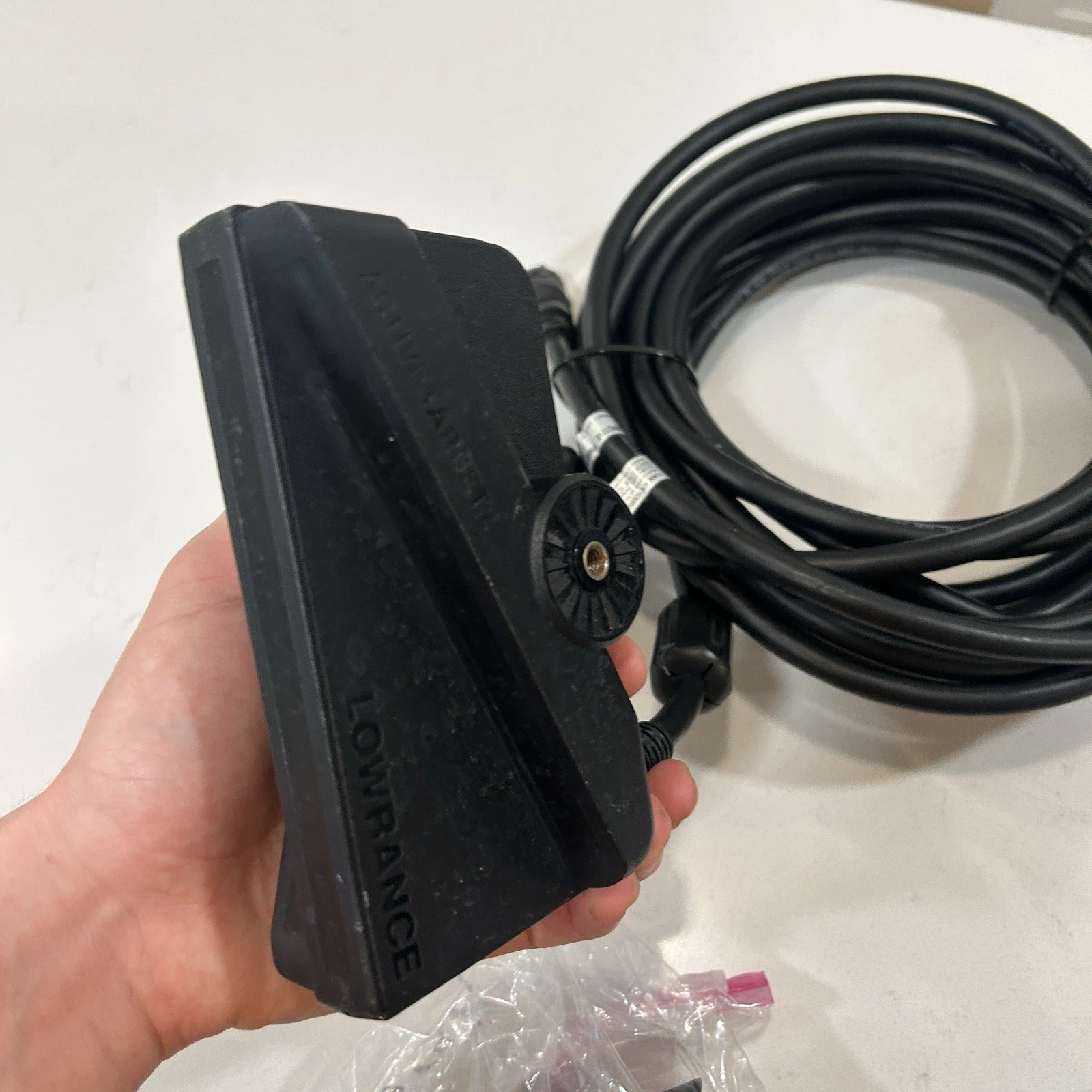

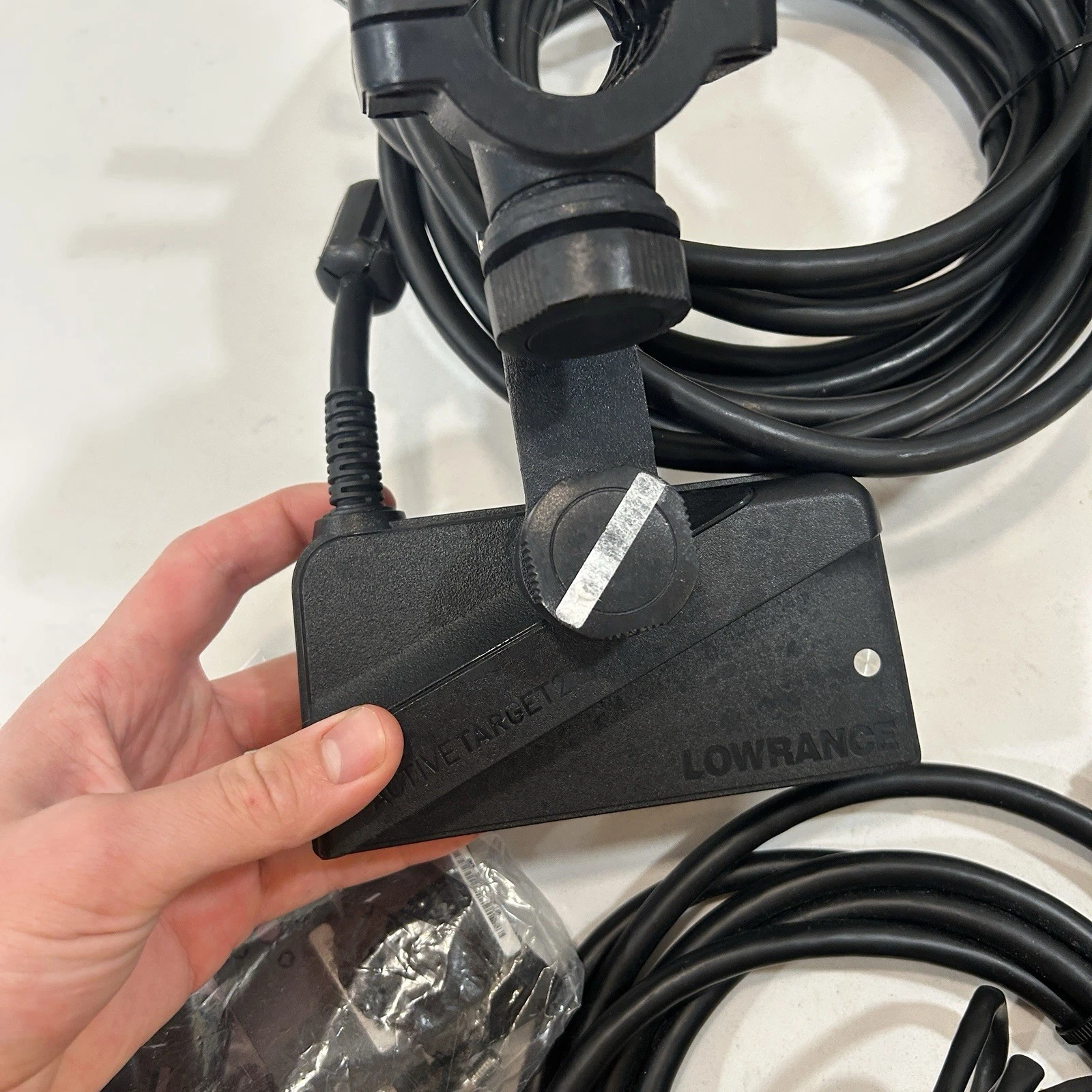

• ActiveTarget 2 Transducer: Provides the live-scanning beam. It includes versatile mounting hardware for trolling motor shafts or barrels.

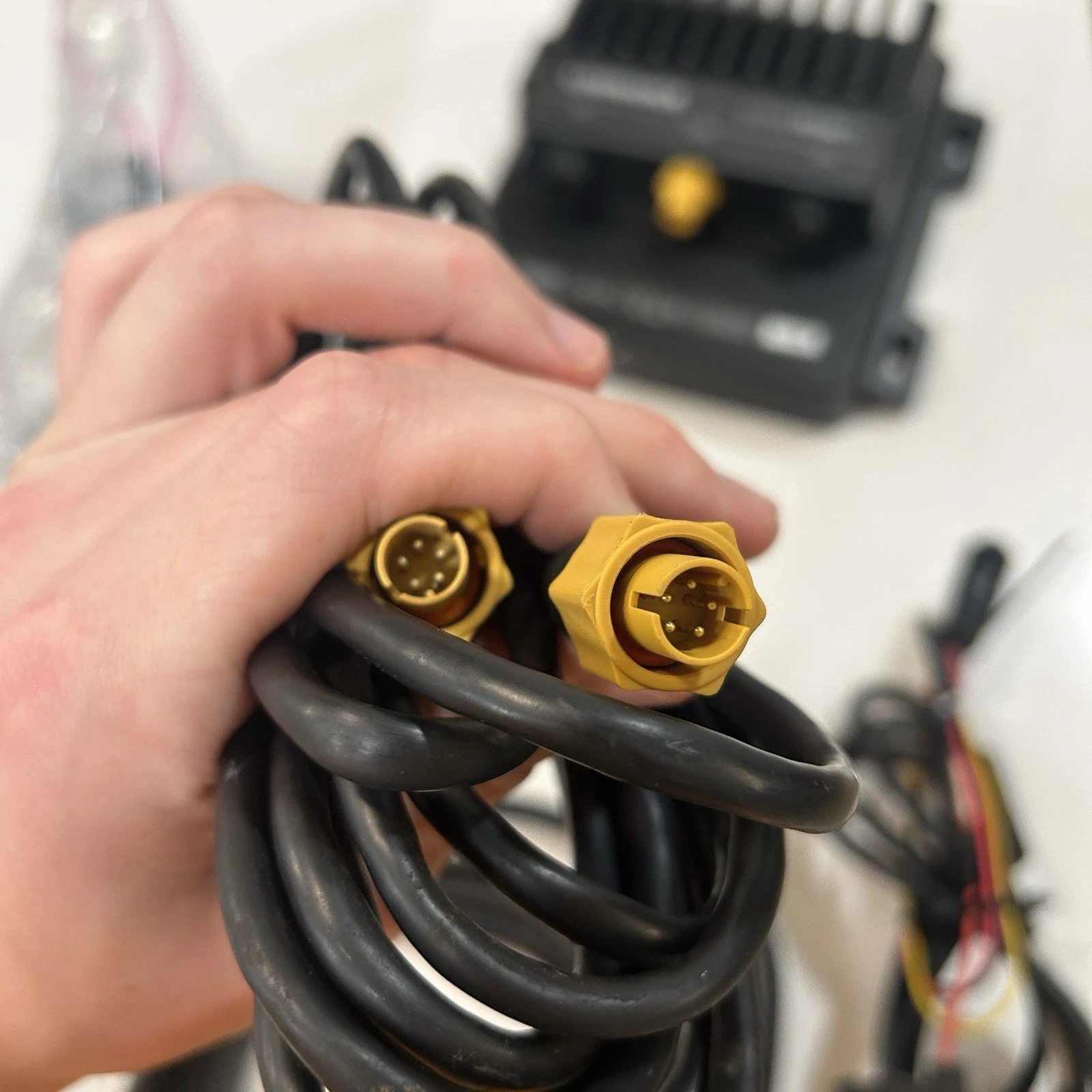

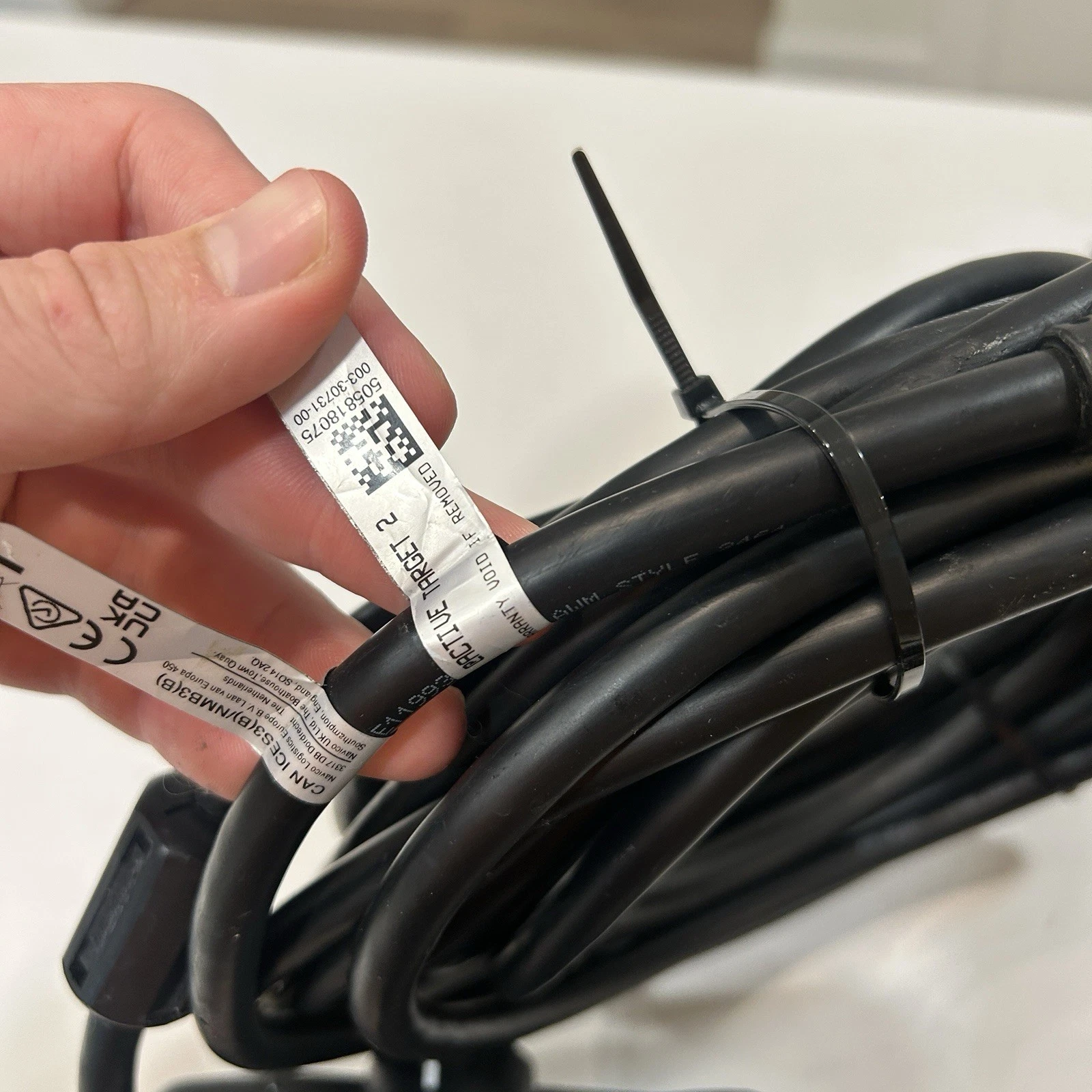

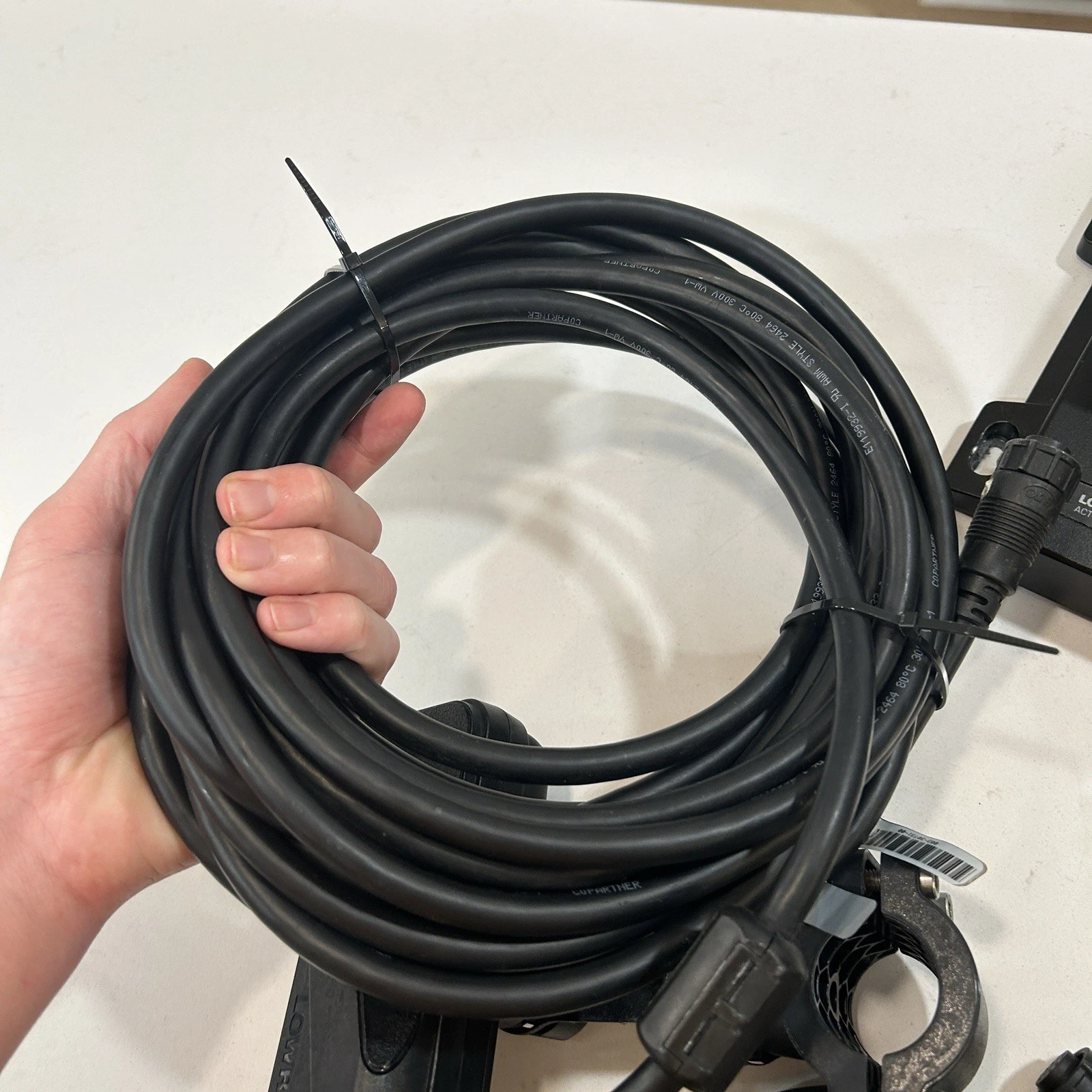

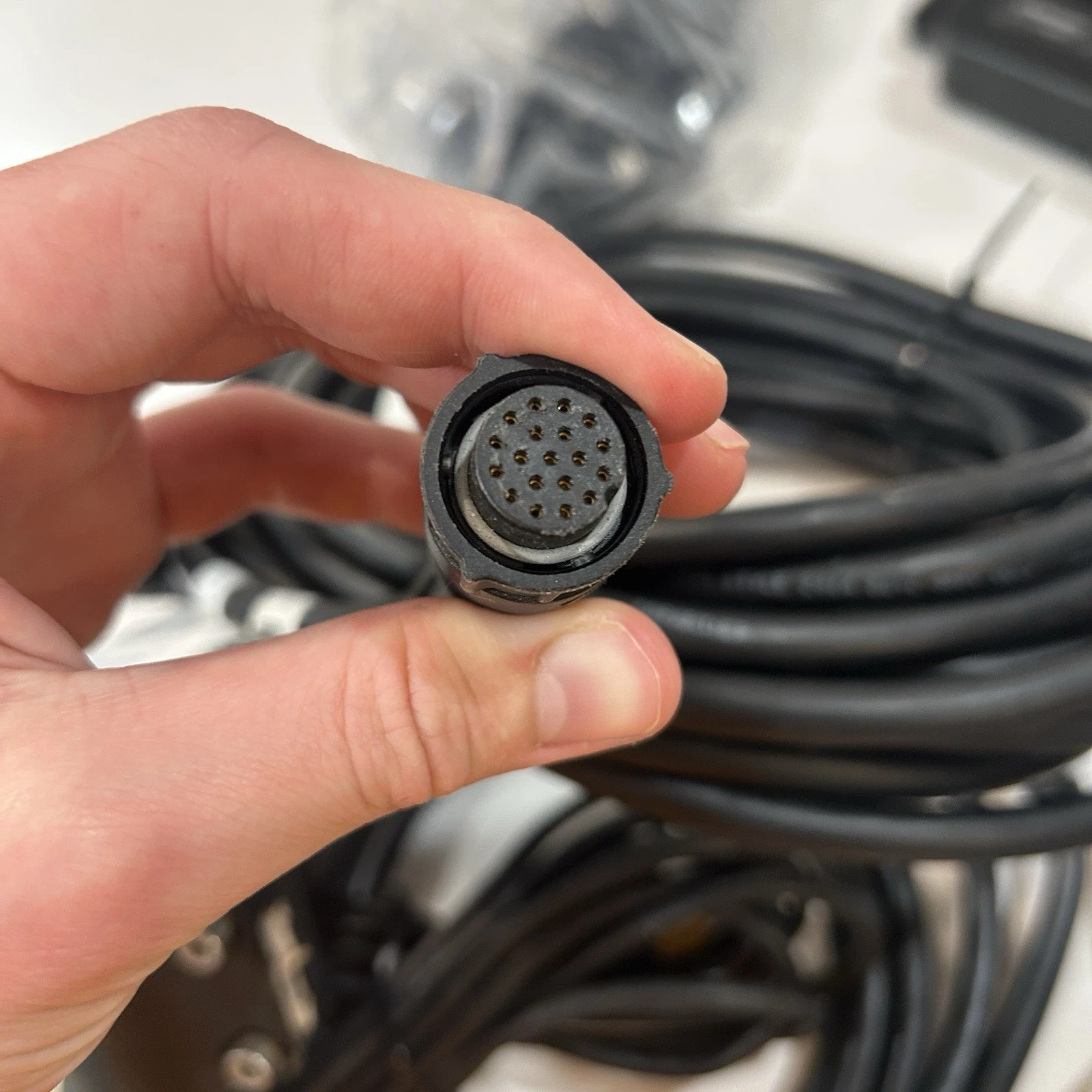

• Cables: Includes a power cable and an Ethernet cable for connecting to your display unit.

Installation Tips for Your Setup

• Power: The system draws 1.5A (typical/max). Use a 3A fuse on your power circuit to protect the unit.

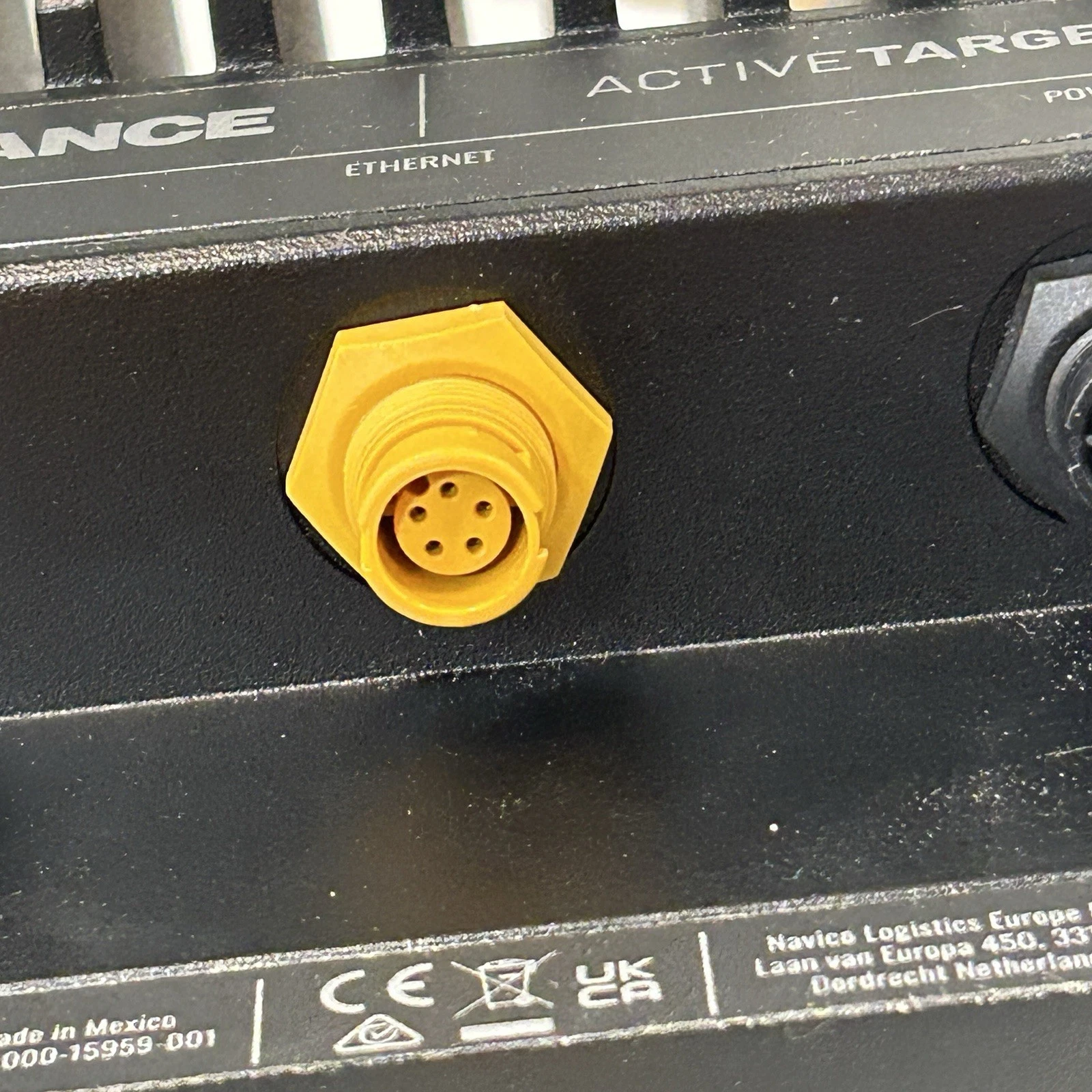

• Networking: You must have a free Ethernet port on your Lowrance display to connect the sonar module. If your ports are full, you will need a Lowrance NEP-2 expansion port.

• Mobile/Belly Boat Use: If you are using this on a belly boat, ensure your battery (LiFePO4) is waterproof-cased and fused. Because this system is highly sensitive to movement, using a stable, adjustable transducer pole is highly recommended to manually orient the sonar beam.
