Garmin GPSMAP7612 12-inch fully capable chartplotter – USED Not XSV

The GPSMAP 7612 is a 12-inch multi-touch chartplotter that was once a flagship multi-function display. Since you are looking at a used unit that is not an “xsv” model, here is exactly what you need to know to ensure it fits your needs.

Important Technical Distinction

• The “xsv” Factor: The 7612 (which you are looking at) does not have a built-in sonar module. The 7612xsv model does.

• What this means for you: If you want to use fish-finding sonar, you cannot simply plug a transducer into the back of a base 7612 unit. You will need to purchase and network an external “black box” sonar module, such as the GSD™ 26 or similar, to get sonar capabilities.

Key Capabilities

• Full Network Power: Despite not having built-in sonar, the 7612 is a powerful “brain” for your boat. It is fully compatible with the Garmin Marine Network (Ethernet) and NMEA 2000.

• LiveScope Compatibility: Yes, this unit can support LiveScope. Because LiveScope (via the GLS 10 sonar module) connects via the Garmin Marine Network (Ethernet), the base 7612 can display and control LiveScope just as effectively as the xsv model.

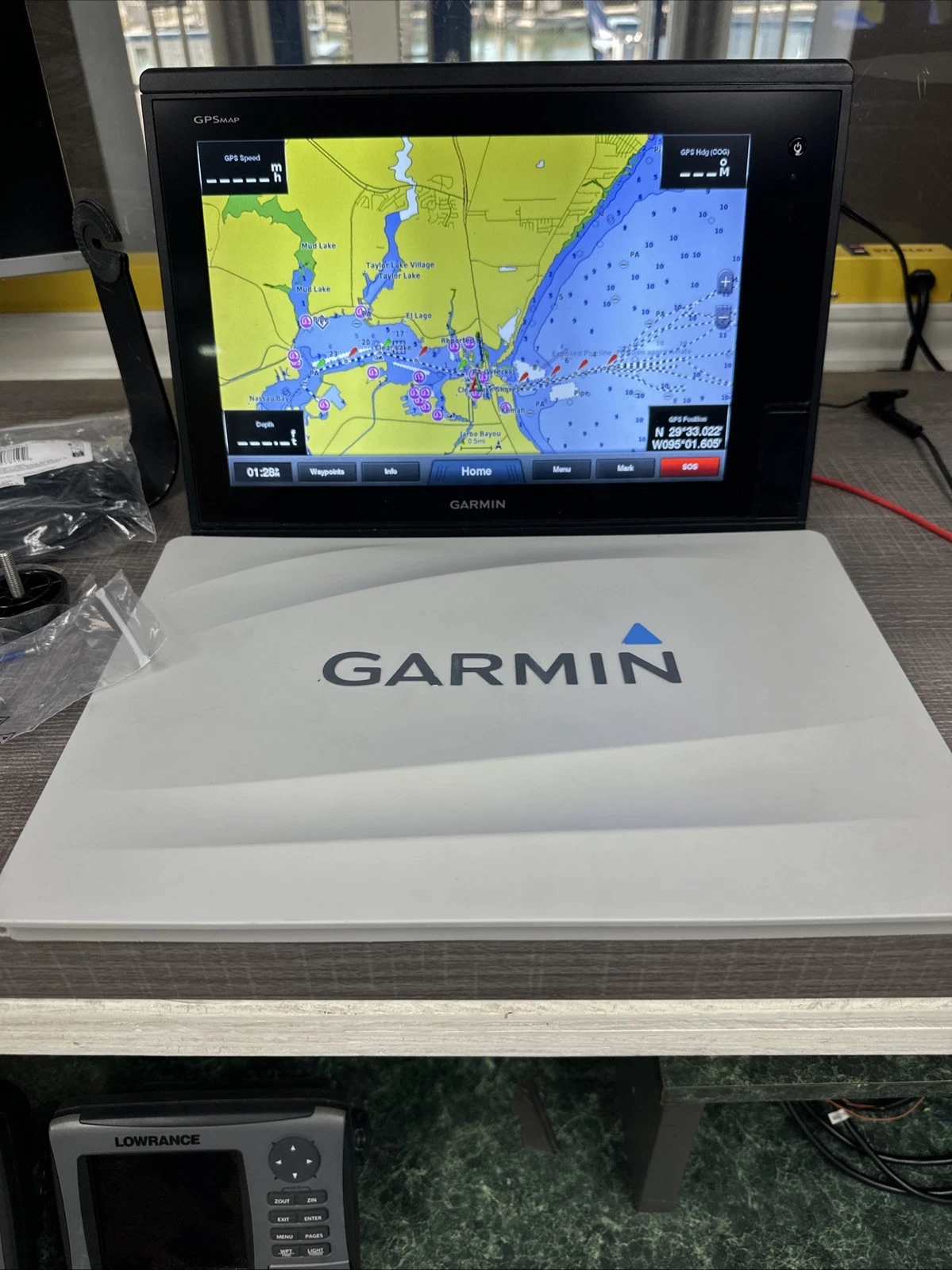

• Display Quality: It features a high-resolution 12-inch WXGA display (1280 x 800 pixels) that remains excellent even by modern standards.

Considerations for a “Used” Purchase

• Support Status: As this is a discontinued product, Garmin no longer manufactures new units, and repair options are increasingly limited.

• Software: Ensure the unit is updated to the latest available firmware to maintain compatibility with modern accessories like the newer LiveScope transducers (LVS34).

• Missing Sonar: Since you won’t have built-in sonar, ensure your system budget accounts for the cost of an external sonar module if you intend to use traditional or scanning sonar (DownVü/SideVü) in addition to LiveScope.

Summary Checklist for Your Build

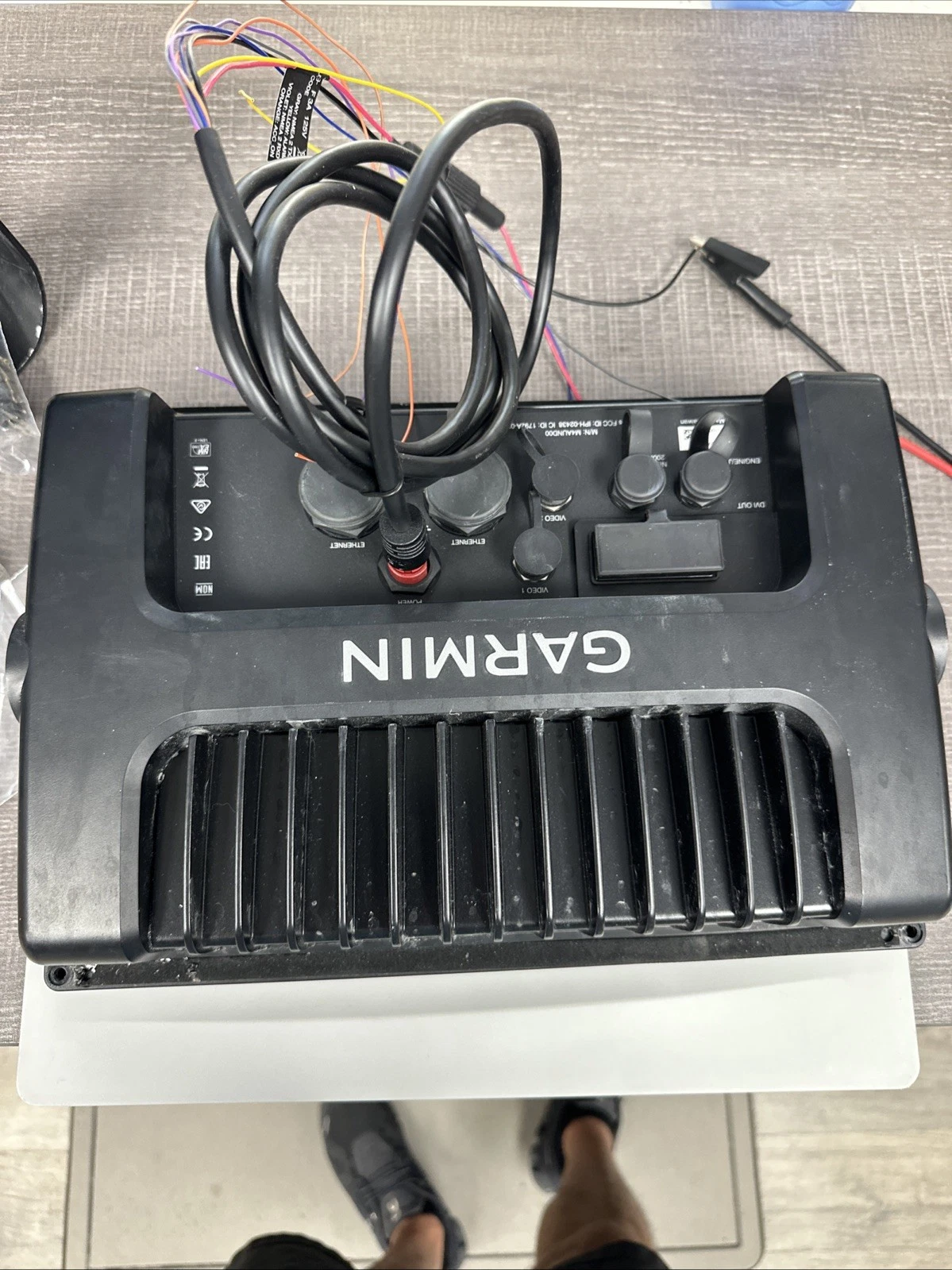

• [ ] Network Port: You must have an available Ethernet (Marine Network) port on the back to connect your LiveScope GLS 10 module.

• [ ] Power/Data: Ensure the used unit includes the power/data cable, as proprietary Garmin marine cables can be expensive and difficult to source.

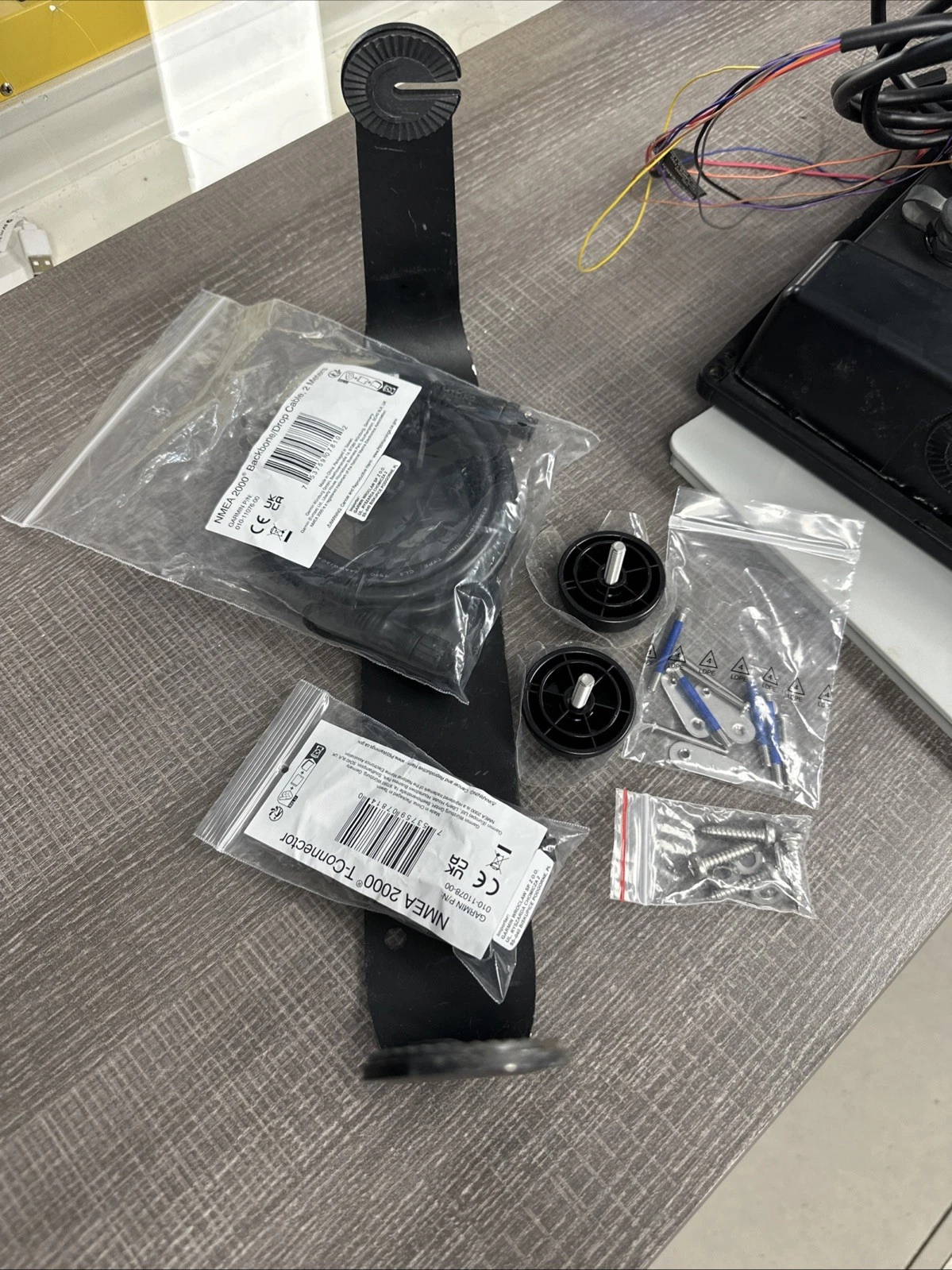

• [ ] Mounting: Confirm whether a bail mount or flush mount kit is included, as these are specific to the 7600 series chassis.
