Garmin GPSMap 7610XSV Unit w/Internal CHIRP Sonar -90-Day Warranty

The Garmin GPSMAP 7610xsv is a powerful, legacy chartplotter/sonar combo that was highly regarded in its time for its 10-inch multi-touch display and advanced sonar capabilities. However, it is important to understand its current status before purchasing a unit with a limited warranty.

Important Status & Compatibility Notes

• Discontinued Product: The GPSMAP 7610xsv has been officially discontinued by Garmin. While it remains a high-performance unit, finding new parts, factory service, or warranty support can be challenging.

• LiveScope Compatibility: The GPSMAP 7610xsv is compatible with the Panoptix LiveScope system (GLS 10 module + LVS32 or LVS34 transducer). You connect the GLS 10 sonar module to the GPSMAP 7610xsv via the Garmin Marine Network (Ethernet) port.

• Warranty Warning: A 90-day warranty is significantly shorter than the standard new-product warranties typically associated with Garmin marine electronics. Given that this is a discontinued unit, ensure you are comfortable with the limited protection, as repair costs for older marine displays can quickly exceed the value of the unit.

Key Specifications

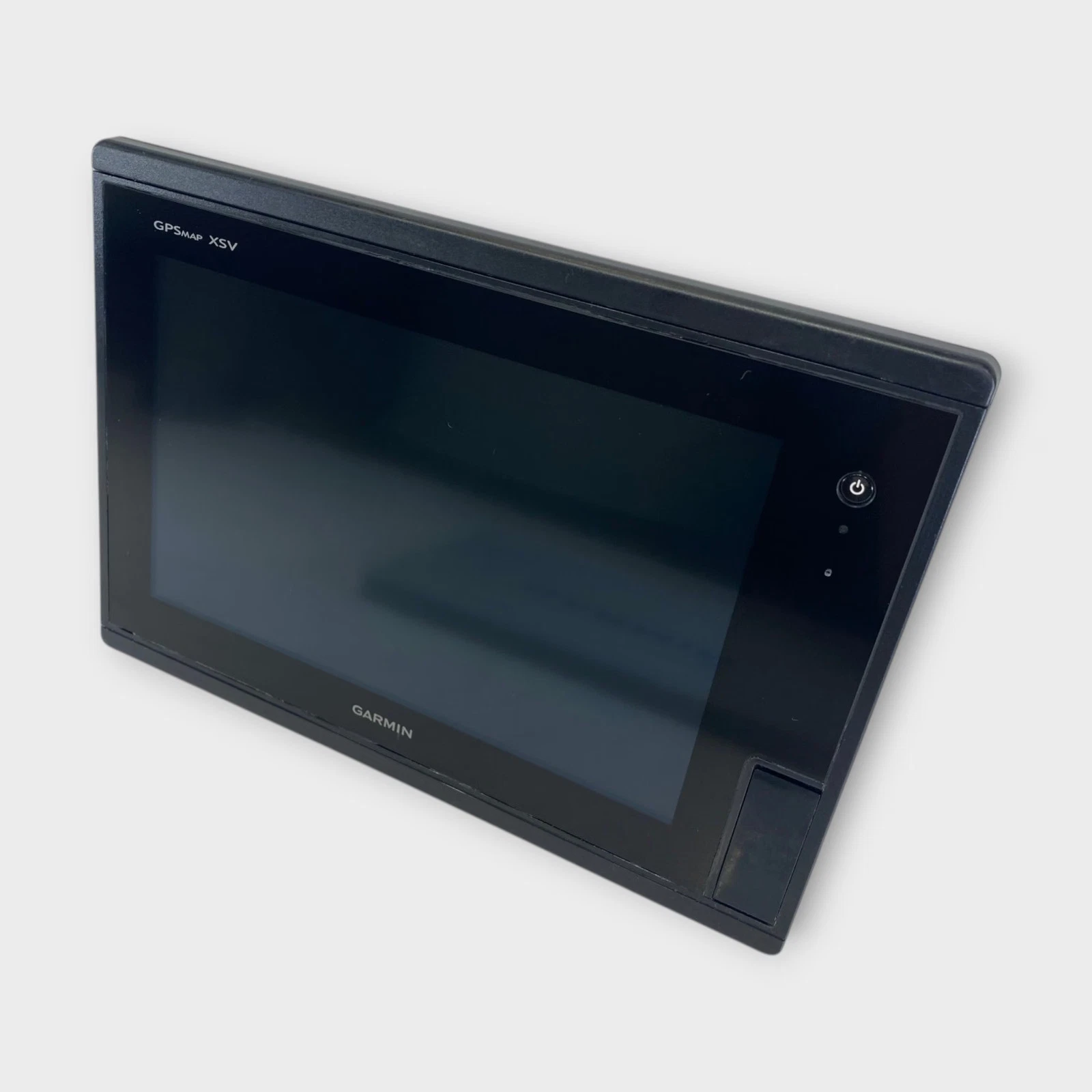

• Display: 10-inch WXGA (1280 x 800) multi-touch widescreen.

• Sonar: Built-in 1kW Dual CHIRP sonar, plus CHIRP ClearVü and SideVü scanning sonar capabilities.

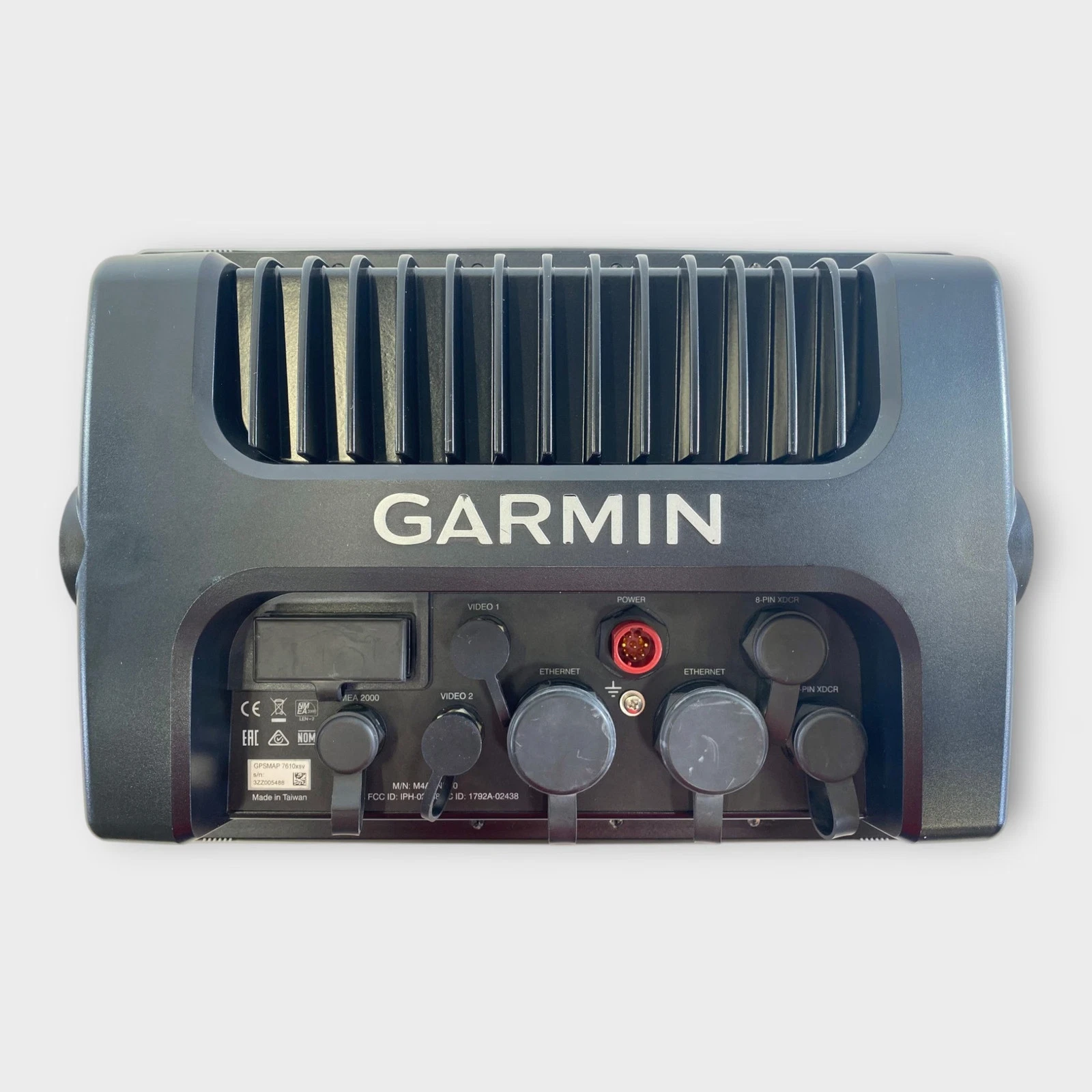

• Networking: Full Garmin Marine Network and NMEA 2000 compatibility for radar, autopilot, sensors, and remote sonar modules.

• GPS: Internal 10Hz GPS/GLONASS receiver.

• Mapping: Historically shipped preloaded with BlueChart® g2 (coastal) and LakeVü™ HD (inland).

Is it right for you?

This unit is a solid choice only if you are trying to match an existing GPSMAP 7600-series setup on your boat or are building a cost-effective system on a tight budget and understand the risks of buying discontinued technology.

If you are building a new system from scratch, I strongly recommend considering current-generation displays (such as the GPSMAP 8600 series or the newer x3 series). Modern units offer:

• Faster processing speeds: For much smoother navigation and sonar rendering.

• Higher resolution screens: For better detail.

• Full support for the newest transducers: Such as the UHD-series transducers, which provide significantly better clarity than the older generation.

• Long-term support: Better access to software updates, maps, and factory repairs.

• What’s Included:
  • GPSmap 7610xsv
  • x2 Trim pieces
  • Suncover

  Compatible Parts:
  Compatible with various Garmin devices.

  Dimensions (L x W x H): 12 x 6 x 9 in, Weight: 7 lbs
